Minimalists

Finally, a third approach adopts the ideas of the first two and pushes minimalism to the extreme. Again, a kind of microhypervisor takes over the service, in addition to a super-minimalistic operating system kernel, which is an old acquaintance from the family of unikernels.

Unikernels have very different implementations. For example, OSv [17] still maintains a certain Linux compatibility, although parallels to the gVisor kernel presented here can be seen. At the other end of the reusability spectrum is MirageOS, the godfather of Nabla containers [18]: Here you build the application and kernel completely from scratch, and both are completely matched to each other. As a result, you only have one executable file. In other words, the application is the kernel and vice versa. One layer below this is the microhypervisor, which specializes in the execution of unikernels. It has little in common with its colleagues Firecracker, Nova [19], or Bareflank [20].

One implementation of this approach is Nabla containers. The roots of the project lie in the IBM research laboratories. Solo5 is used as the micro-hypervisor. Originally it was only intended as an extension of MirageOS for KVM [21]. Today, it is a framework for executing various unikernel implementations. Despite the proximity to MirageOS, Nabla containers have developed a certain preference for rump kernels [22].

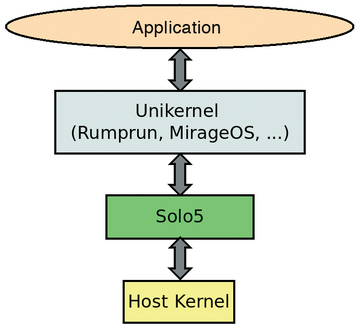

The schematic structure is shown in Figure 5. The name "Nabla" derives from its structure. At the top is the micro-hypervisor with the unikernel, the basis of which is the application. The size of the components reflects their importance on the business end, and the order corresponds to the structure of the technology stack. The result is an upside-down triangle that is very similar to the nabla symbol from vector analysis.

Figure 5: The schematic structure of Nabla containers.

A few advantages of Nabla containers are obvious: As with the Kata approach, the operating system core and virtualization present two isolation layers that are greatly minimized and require significantly less in terms of resources than the combination of Clear Linux and Qemu Lite. Additionally, almost all system calls are prohibited in Nabla containers. The software uses the kernel's secure computing mode (seccomp) functions [23]. Ultimately, the following system calls are available:

• read()
• write()
• exit_group()
• clock_gettime()
• ppoll()
• pwrite64()
• pread6()

On the downside, unlike Kata Containers or gVisor, existing container images cannot be used directly with the Nabla approach, revealing a clear lack of compatibility. Tests conducted by the editorial team showed that the migration overhead is huge, even for small applications.

Where to Next?

The container community takes the issue of security very seriously. In principle, there are two parallel streams: One deals with improving the container software, and the other, as discussed in this article, deals with methods for establishing additional outside lines of defense. The idea of using a DMZ from the network sector is experiencing a renaissance. An additional operating system kernel – and sometimes even a virtualization layer – acts as a buffer zone between the application and the host.

Basic compatibility with the known management tools for containers is a given; they can even be operated completely in parallel (see also Listing 2). However, the reusability of existing applications and container images differs widely. Kata Containers put fewer obstacles in the user's way, At the other end of the spectrum are Nabla containers. Either way, the idea of the buffer zone is as simple as it is brilliant. Thanks to the different implementations, there should be something to suit everyone's taste.
